FORMAT4 - PROFIT H20DE-CNC-FEL-2011-00001

Name: FORMAT4 PROFIT H20
Brand: FORMAT4
SKU: DE-CNC-FEL-2011-00001
Price: 18000 EUR
Availability: InStock

18,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Wood Working
➤ Used FELDER PROFIT H 20 - 2011 - For Sale | gindumac.com

Show in original language

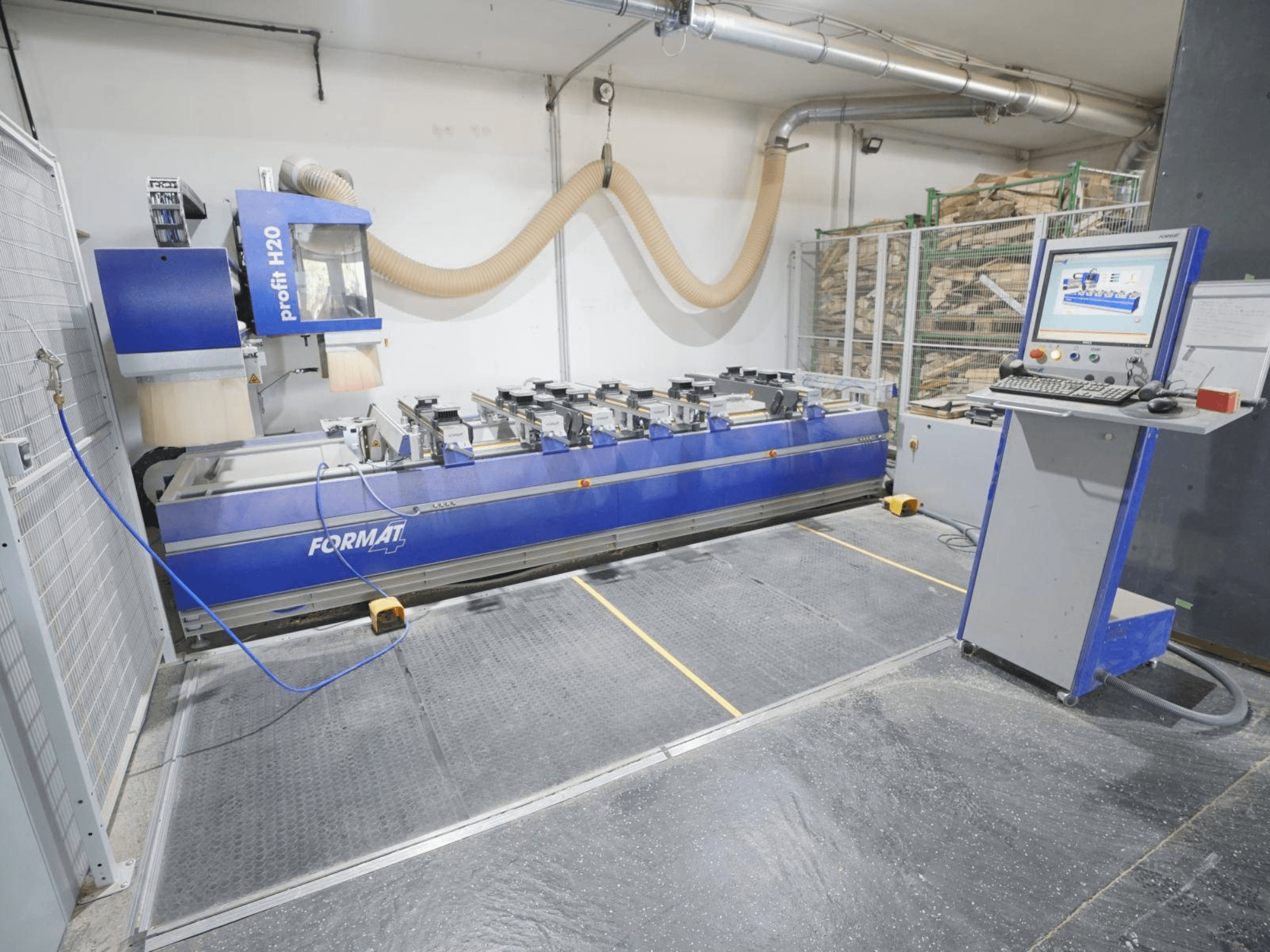

This 3-axis FELDER PROFIT H 20 CNC Wood Machining Centre was manufactured in 2011. It features a working range of 3,060 mm in the X-axis and 1,260 mm in the Y-axis, with a maximum speed of 24,000 rpm. The machine includes 14 vertical drilling spindles and 4 horizontal drilling spindles in the X-direction. If you are looking to get high-quality wood machining capabilities, consider the FELDER PROFIT H 20 machine we have for sale. Contact us for further details.

Overview

brand: FORMAT4
year: 2011
MODEL: PROFIT H20
application type: CNC Wood Machining
Location: Germany
machine type: CNC Wood Machining Centre
Available from: 01/10/2026

Technical Information - FORMAT4 PROFIT H20

Dimensions

Machine Weight: 3350 kg

Movement

Number of Axes: 3
X-axis Travel: 3060 mm
Y-axis Travel: 1260 mm
Z-axis Travel: 100 mm

Technical Specification

Spindle Power: 9 kW
Spindle Speed: 24000 RPM

Additional Information

Number of Milling Spindles: 1
Main Motor: 9 kW
Torque Support: Included
Tool Clamping System: HSK-F63
Tool Changer Positions: 8
Linear Changer: Included
Vertical Drilling Spindles: 14
Horizontal Drilling Spindles X: 4
Horizontal Drilling Spindles Y: 2
Grooving Saw: In X-direction
Positioning Aid: Included
Crosshair Laser: Included
Vacuum Pump: Included
Number of Vacuum Pumps: 1
Vacuum Pump Capacity: 90 m³/h
Safety Device: Safety mat (Trittmatte)
Tool Change Helper Device: Included
Workpiece Support Aids: Included
Pendulum Machining: Included
Control Unit: TPA ALBATROS
Software: TPA ALBATROS 2
Total Connected Load: 15 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
