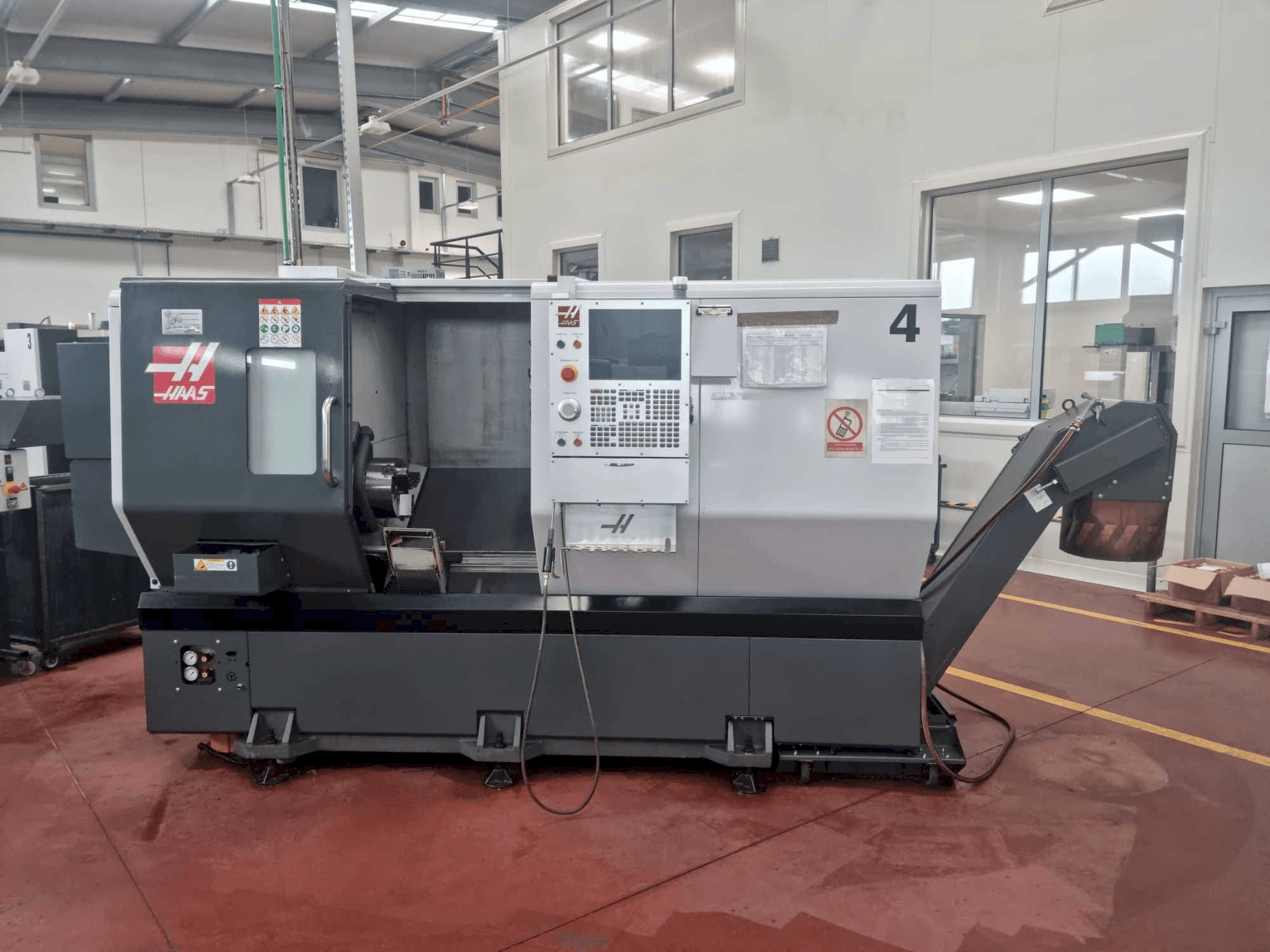

Front view of HAAS ST-30Y  machine

HAAS - ST-30YHR-TUR-HAA-2019-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This HAAS ST-30Y Lathe was built in 2019 in the United States and has 9840 hours. It is equipped with a Haas control unit. The machine has a spindle speed of 3400 rpm.

Overview

  • brand: HAAS
  • year: 2019
  • MODEL: ST-30Y
  • production hours: 9840
  • application type: Turning
  • Location: Croatia
  • machine type: Turn-Mill Centre
  • availability: Sold
  • control unit brand: Haas

Technical Information - HAAS ST-30Y

Control Unit

  • Brand: Haas

Main drive

  • Spindle speed range: 3400 1/MIN
  • Spindle motor power: 30 hp (22.4 kW) vector drive

Movement

  • X-AXIS Rapid traverse: 12 / 12 m/min
  • Y-AXIS Movement: +/- 50.8 mm
  • Y-AXIS Rapid traverse: 12 / 12 m/min
  • Z-AXIS Movement: 584 mm
  • Z-AXIS Rapid traverse: 24 m/min

Media

  • Chip conveyor: Yes

    Additional Equipment

    • - Synchronized Tapping with Spindle Compensation
    • - C-Axis Driven Tooling, max. 6000 rpm
    • - Programmable Spindle Orientation
    • - High-Pressure Coolant Pump, 21 bar
    • - Automatic Tool Measurement
    • - Electrical Cabinet Cooling Unit
    • - Parts Catcher Arm
    • - Programmable Tailstock
    • - Macro Functions - Subprogram Creation
    • - Media Display, 25 Micron Coolant Filtration

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Max turning diameter: Ø457 mm
        • - Max turning capacity (over bed): Ø806 mm
        • - Chuck size: Ø254 mm
        • - Tool turret: bmt65 with 12 stations
        • - Coolant tank capacity: 208 l
        • - Control device: 15" color lcd monitor, usb port, 1 gb program memory

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
