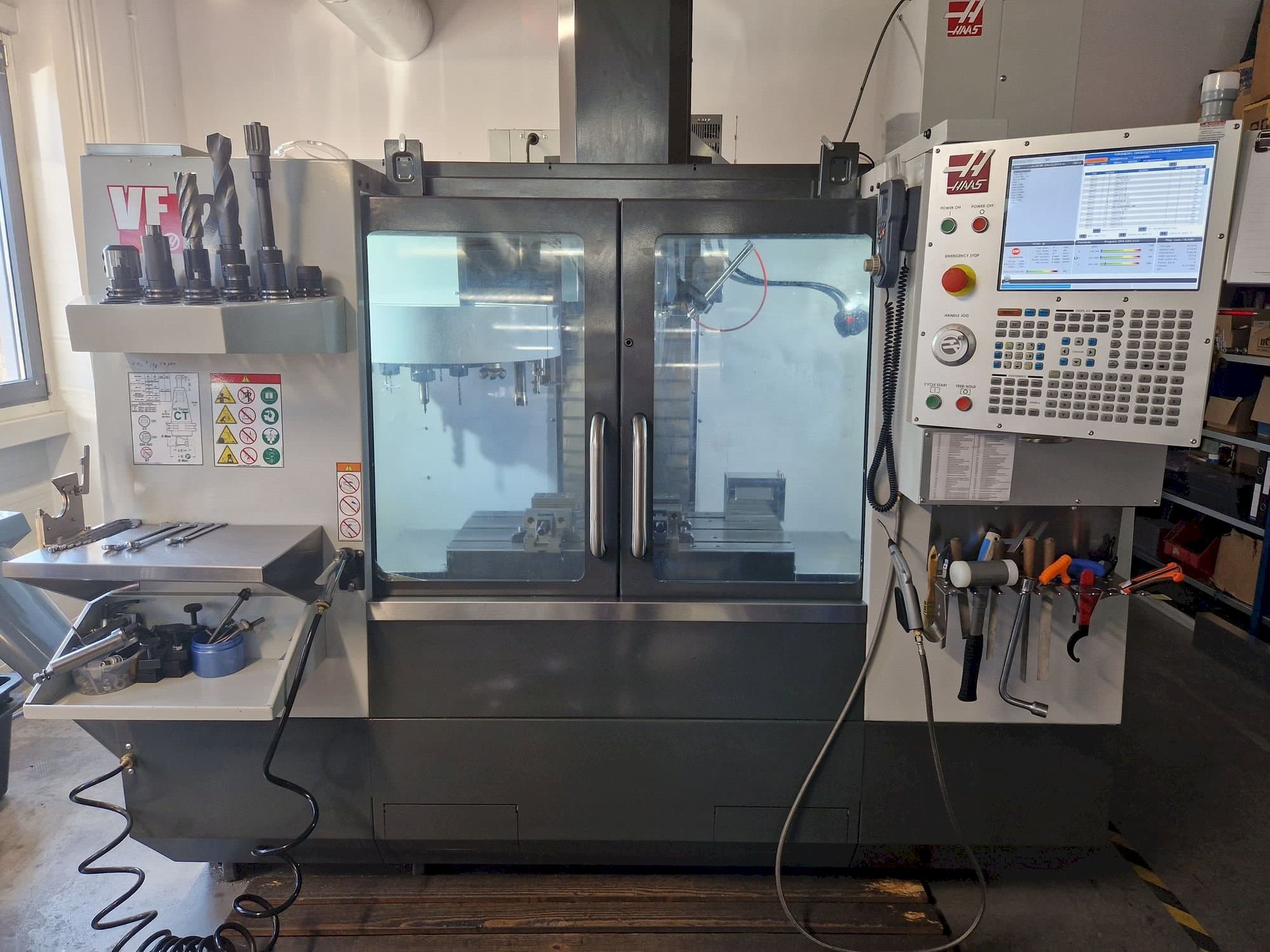

HAAS VF-2 Vertical Machine Center

Show in original language

This HAAS VF-2 Vertical Machine Center was made in 2019 in the United States and has 5230 hours. It is equipped with a HASS version NGC control unit and has 3 axis. The machine has a spindle speed of 8100 rpm, and it is in perfect condition, with regular maintenance, and full documentation. The machine includes tool holders.

Overview

brand: HAAS
year: 2019
MODEL: VF-2
production hours: 5230
application type: Milling
Location: Poland
machine type: Vertical Machining Centre

Technical Information - HAAS VF-2

General Data

Measurements width: 2789 mm
Measurements depth: 2357 mm
Measurements height: 2654 mm
Machine weight: 3311 kg

Control Unit

Model: NGC

Main drive

Spindle speed range: 8100 1/MIN
Spindle motor power: 22.4kW
Tool taper: ISO 40 mounting cone
Number of axis: 3

Movement

X-AXIS Movement: 762 mm
Y-AXIS Movement: 406 mm
Z-AXIS Movement: 508 mm

Table

Outer length: 914 mm
Outer width: 356 mm
Table load: 1361 kg

Media

Main electronic connection: 3x400V - 50hz

Additional Information

Additional equipment

AUGER screw chip ejector
P-COOL - programmable position of coolant nozzles
PMDS - preparation for probe work
WIPS-R - probe set for tool and workpiece measurement with SOM, COORD, MACRO
Probes for workpieces and tools
30 pcs of tool holders

Machine Benefits

Qualitative Machine Benefits

Machine in perfect condition, regular maintenance, full documentation

Technical Machine Benefits

Table design t-slots 16mm wide with 125mm spacing
Maximum torque at 2000 rpm - 122 nm
Maximum torque at 450 rpm - 339 nm
Maximum pulling force of the x and y axes 11. 3 kn
Maximum pulling force of the z axis 18. 6 kn
Working feeds and run-up speed: running speed in x, y, z axes 25. 4 m/min, working feed rate 16. 5 m/min
Machine positioning accuracy +/-0. 005 mm
Repeatability of machine positioning +/-0. 003 mm
Cooling tank 208 l
Air pressure 6. 9 bar, air consumption 113 l/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
