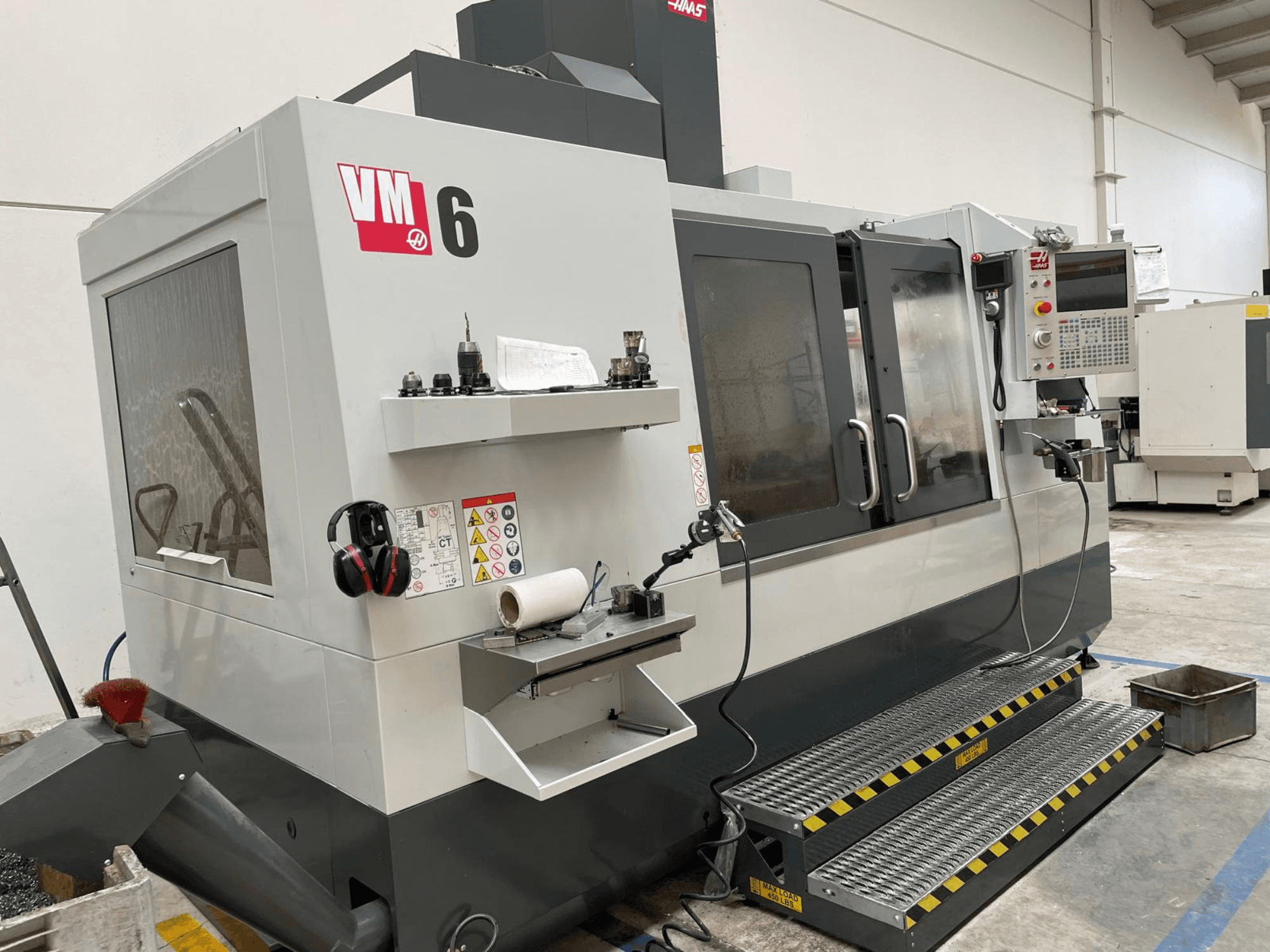

HAAS - VM-6ES-MIL-HAA-2024-00001

Spindle nose to table: max 864 mm (34.0 in), min 102 mm (4.0 in)

Spindle

• Max torque: 122.0 Nm @ 2000 rpm (90.0 ft-lbf)

• Drive system: Inline direct-drive

• Taper: CT40 | BT40 | HSK-A63

• Lubrication: Air/oil injection

• Cooling: Liquid cooled

Table

• Length: 1626 mm (64.0 in)

• Width: 711 mm (28.0 in)

• T-slot width: 15.90–16.00 mm (0.626–0.630 in)

• T-slot center distance: 125 mm (4.92 in)

• Max weight on table: 1814 kg (4000 lb)

Feedrates and thrust

• Max cutting feedrate: 12.7 m/min (500 ipm)

• Rapids (X/Y/Z): 15.2 m/min (600 ipm)

• Max thrust X: 15,124 N (3400 lbf)

• Max thrust Y: 18,238 N (4100 lbf)

• Max thrust Z: 24,910 N (5600 lbf)

Tool changer

• Type: SMTC (side-mount)

• Capacity: 30+1

• Max tool diameter (full): 64 mm (2.5 in)

• Max tool diameter (adjacent empty): 127 mm (5.0 in)

• Max tool length: 406 mm (16 in)

• Tool-to-tool time (avg): 2.80 s

• Chip-to-chip time (avg): 3.60 s

Utilities

• Coolant capacity: 360 L (95 gal)

• Air required: 113 L/min @ 6.9 bar (4 scfm @ 100 psi)

• Minimum air pressure: 5.5 bar (80 psi)

Electrical

• Input AC voltage (3-phase) low: 220 VAC, full load amps: 70 A

• Input AC voltage (3-phase) high: 440 VAC, full load amps: 35 A
