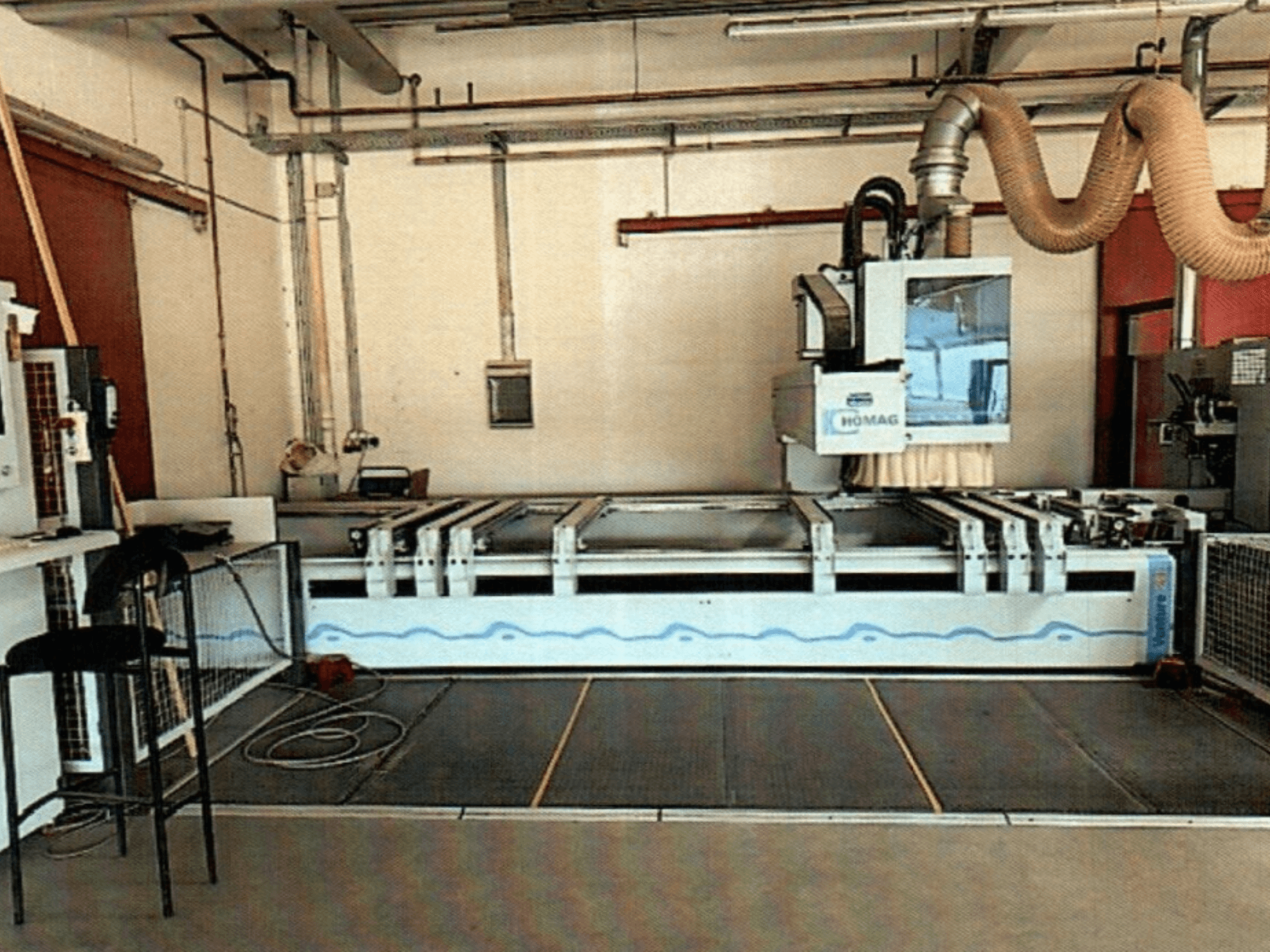

This 4-axis HOMAG BAZ 211/40K was manufactured in 2010. It features a vacuum clamping system with multiple configurations, a powerful vacuum pump, and a Flex5+ sawing, milling, and drilling aggregate. The machine is equipped with three tool changers and an edge banding package for enhanced processing capabilities. If you are looking to get high-quality CNC wood machining capabilities, consider the HOMAG BAZ 211/40K machine we have for sale. Contact us for further details.
Overview
- brand: HOMAG
- year: 2010
- MODEL: BAZ 211/40K
- application type: CNC Wood Machining
- Location: Germany
- machine type: CNC Wood Machining Centre
Technical Information - HOMAG BAZ 211/40K
Movement
- Number of Axes: 4
Additional Information
Vacuum clamping system: 8x 120x50 mm (0/90°) K-Table
Rotating vacuum clamping system: 8x 125x75 mm (360°) K-Table
Vacuum pump: Reinforced 100/140 m³/h
Aggregate: Flex5+ sawing, milling, and drilling aggregate for tool changer (WZW)
Tool changers: 3x tool receivers for Flex5+ (WZW)
Edge banding package: Power EDGE 360° for BAZ 211/311 Venture
Edge processing: Workpiece edge blow-off nozzle
Milling/Scraping: Combination flush milling and scraper aggregate (WD 60 mm)
Profile blades: 2x for scraper
Radius cutter head: 2x WPL radius cutter head
Material handling: Tool transfer station for B200/300/K
Software: Upgrade to woodWOP 6.0
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
