MAS - MASTURN 550PL-TUR-MAS-2010-00001

Name: MAS MASTURN 550
Brand: MAS
SKU: PL-TUR-MAS-2010-00001
Price: 29000 EUR
Availability: InStock

29,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used MAS MASTURN 550 For Sale | gindumac.com

Show in original language

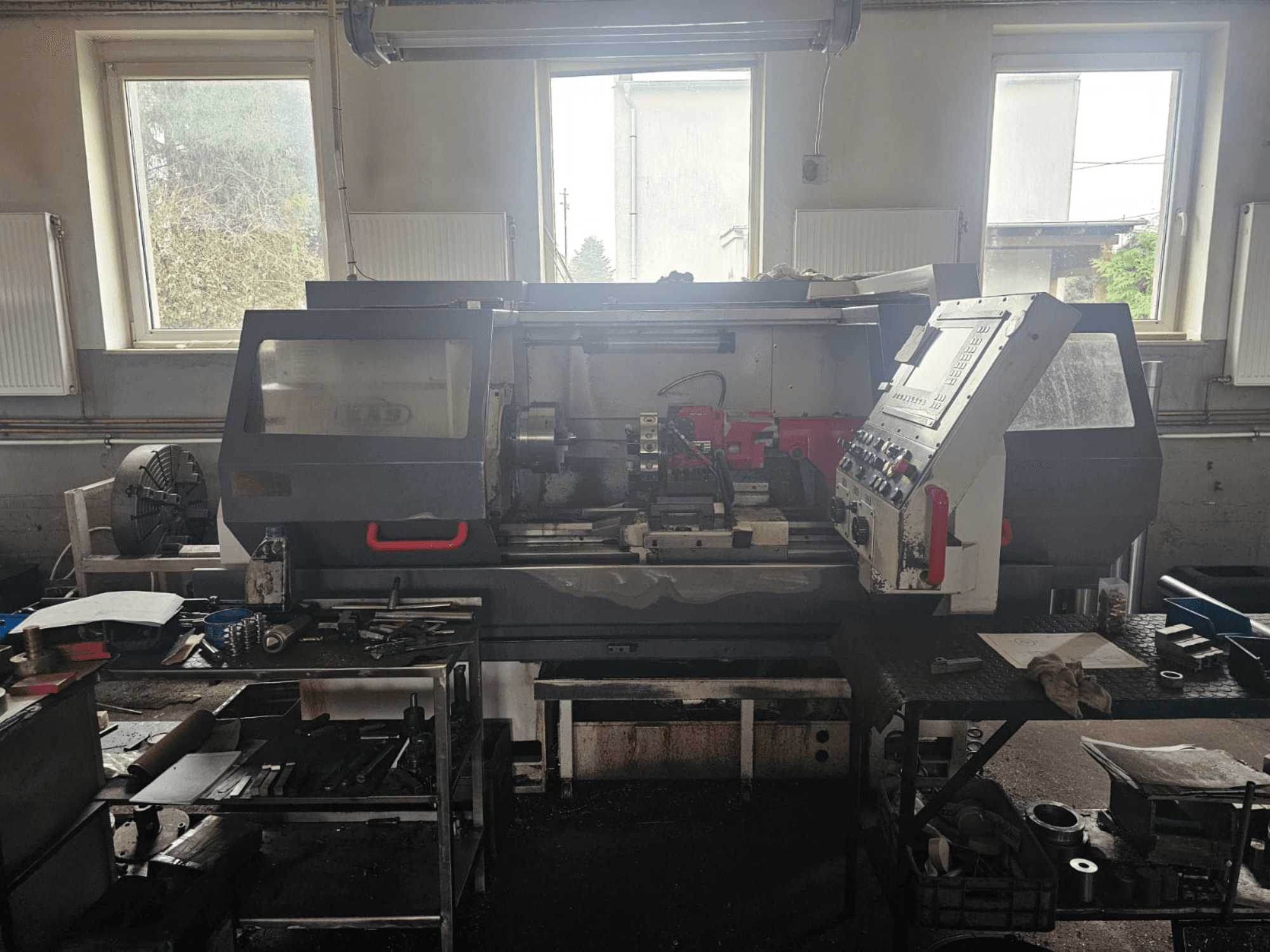

This MAS MASTURN 550 was manufactured in 2010. It features a swing over bed of 550 mm and a maximum turning diameter of 500 mm. The spindle supports a speed range up to 3000 rpm, and it's equipped with a HEIDENHAIN MANUAL plus 4110 control system. If you are looking to get high quality turning capabilities consider the MAS MASTURN 550 machine we have for sale. Contact us for more information.

Overview

brand: MAS
year: 2010
MODEL: MASTURN 550
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
control unit brand: HEIDENHAIN

Technical Information - MAS MASTURN 550

Control Unit

Control Brand: HEIDENHAIN
Control Model: MANUAL plus 4110

Movement

Number of Axes: 2
X-axis Travel: 285 mm
Z-axis Travel: 890 mm

Technical Specification

Spindle Speed: 3000 RPM

Additional Information

Swing over bed: 550 mm
Swing over cross slide: 350 mm
Maximum turning diameter: 500 mm
Distance between centers: 900 or 1600 mm
Maximum workpiece weight: 600 kg

Spindle
- Spindle bore: 82 mm
- Spindle taper (metric): 90 mm
Control system
- HEIDENHAIN MANUALplus 4110
Axes
- X-axis: ball screw diameter/pitch 25/5 mm; travel 285 mm; rapid traverse 10 m/min; maximum feed force 5 kN; repeat positioning accuracy 0.01 mm
- Z-axis: ball screw diameter/pitch 40/5 mm; travel 890 or 1590 mm; rapid traverse 10 m/min; maximum feed force 10 kN; repeat positioning accuracy 0.015 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
