Okuma - GENOS M460V-5AXHU-MIL-OKU-2019-00002
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Okuma GENOS M460V-5AX For Sale | gindumac.com

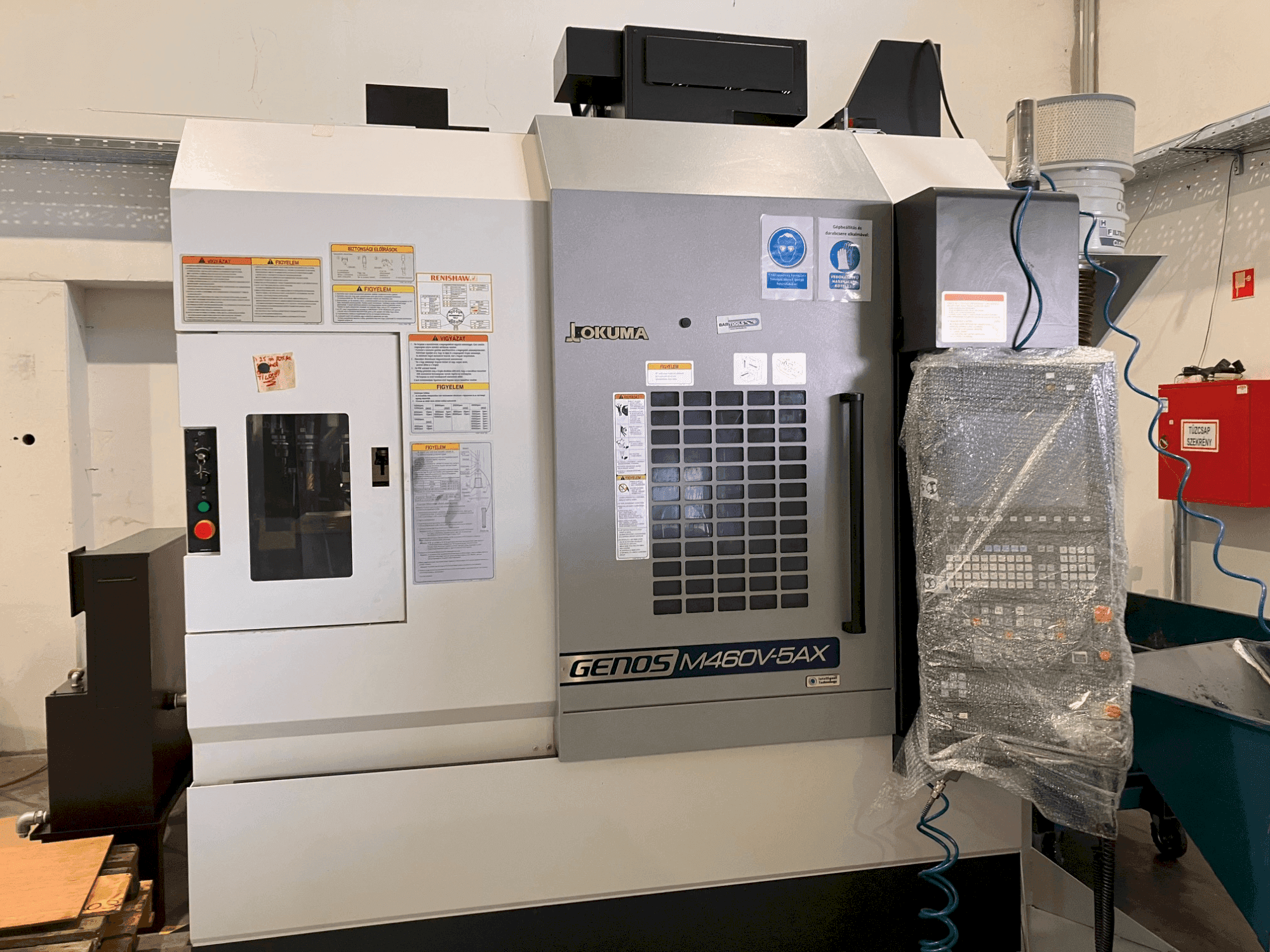

This 5-axis Okuma GENOS M460V-5AX was manufactured in 2019, featuring a rapid traverse speed of 40 m/min in X/Y-axis and 32 m/min in Z-axis. It includes a high-speed trunnion-type 2-axis rotary table, a 48-tool ATC, and a main spindle speed up to 15,000 min-1. Ideal for complex machining tasks, consider the opportunity to buy this Okuma GENOS M460V-5AX vertical machining centre. Contact us for more information about this machine.
Overview
- brand: Okuma
- year: 2019
- MODEL: GENOS M460V-5AX
- application type: Milling
- Location: Hungary
- machine type: Vertical Machining Centre
Technical Information - Okuma GENOS M460V-5AX
Movement
- Number of Axes: 5
Technical Specification
- Spindle Power: 22 kW
- Spindle Speed: 15000 RPM
Additional Information
Additional equipment
- Spindle Head Cooling with Oil Controller
- Hydraulic Power Pack for Tool Unclamping
- ATC Air Blower
- Chip Air Blower, Nozzle Type
- Coil Type Chip Conveyor, 0.1 kW x 2 pcs
- Chip Pan
- Pre-arrange for Lift-up Chip Conveyor Floor Type M-A Type
- Thermo Active Dimension Stabilizer-Spindle (TAS-S)
- Thermo Active Dimension Stabilizer-Construction (TAS-C)
- Totally Enclosed Guard (CE Mark Application)
Machine Benefits
Technical Machine Benefits
- Status indicator lamp, 2-layer type (blue: operation end lamp / yellow: alarm lamp)
- 5-axis auto tuning system
- Geometric error gauging
- Geometric error compensation
- Straightness compensation
- Auto work gauging with renishaw touch probe rmp60
- Cutting feedrate: max. 32 m/min.
Extra Information
CNC Controller: OSP-P300MA with 15" Colour Display, Touch Panel Program Storage Capacity: 4GB Operation Buffer: Standard 2MB Easy-to-Operate Functions Absoscale X/Y/Z-axis Workpiece Table: Trunnion-type High speed 2-axis rotary table Table Size: Diameter 400mm A-axis Speed: 40 min-1 C-axis Speed: 50 min-1 Tools 48-tool ATC ATC Specification: MAS BT40 + JIS Special pull stud (with through hole) Media Coolant Supply System: Tank Capacity: 170L (Effective 100L) Pump Motor: 0.25 kW Shower Coolant Supply Through-the-Spindle Coolant Supply System, Middle Pressure 1.5 MPA / 20L/min
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
