- Sei Laser Mercury 1530 Fiber laser cutting machine

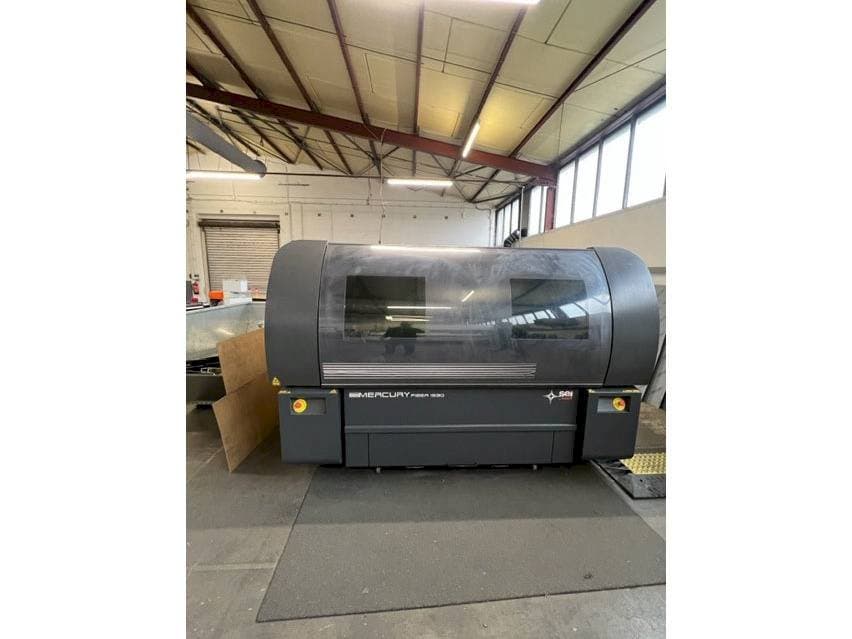

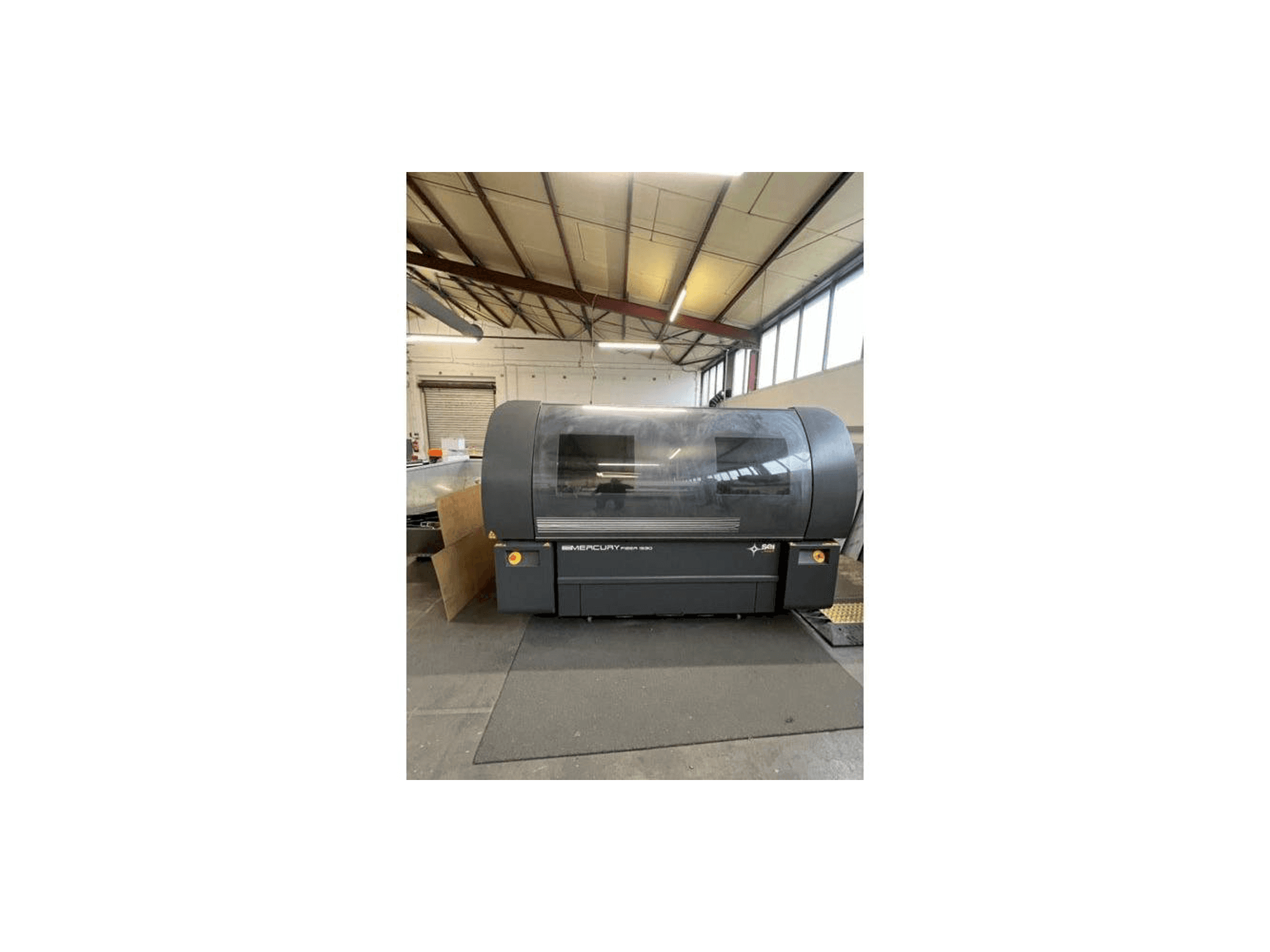

This Sei Laser Mercury 1530 Fiber laser cutting machine was manufactured in the year 2017 and has 4000 production hours. The machine has a laser power of 1,5 kW. The Mercury 1530 is a high-performance fiber laser cutting system designed for precise processing of metals and metal alloys. Equipped with advanced linear motor technology, the machine offers high dynamics, excellent positioning accuracy, and reliable industrial performance. With a working area of 1500 × 3080 mm, it is ideally suited for medium to large sheet formats.
Overview
- brand: SEI Laser
- year: 2017
- MODEL: Mercury 1530
- production hours: 4000
- application type: Cutting
- Location: Germany
- machine type: Fiber Laser Cutting Machine
Technical Information - SEI Laser Mercury 1530
Dimensions
- Machine Depth: 2700 mm
- Machine Height: 1770 mm
- Machine Length: 5050 mm
- Machine Weight: 2400 kg
- Machine Width: 2750 mm
- Table Length: 3000 mm
- Table Width: 1500 mm
Movement
- X-axis Travel: 3000 mm
- Y-axis Travel: 1500 mm
Technical Specification
- Laser Power: 1.5 kW
Additional Information
Machine Benefits
Technical Machine Benefits
Culvert-high: 50 mm
Drive system: Linear motors
Laser type: Fiber laser
Laser wavelength: 1070 nm
Laser power: 1.5 kW
Working area: 1500 × 3080 mm
Machine dimensions (L × W × H): 5050 × 2750 × 2150 mm
Repeatability: < 0.05 mm
Accuracy: ± 0.05 mm
Axes resolution: 0.001 mm
Maximum programmable acceleration: up to 20 m/s²
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
