AIDA - NC 1-1500CZ-STA-AID-2007-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Sheet Metal Machinery
- AIDA NC 1-1500 Stamping Machine
Show in original language

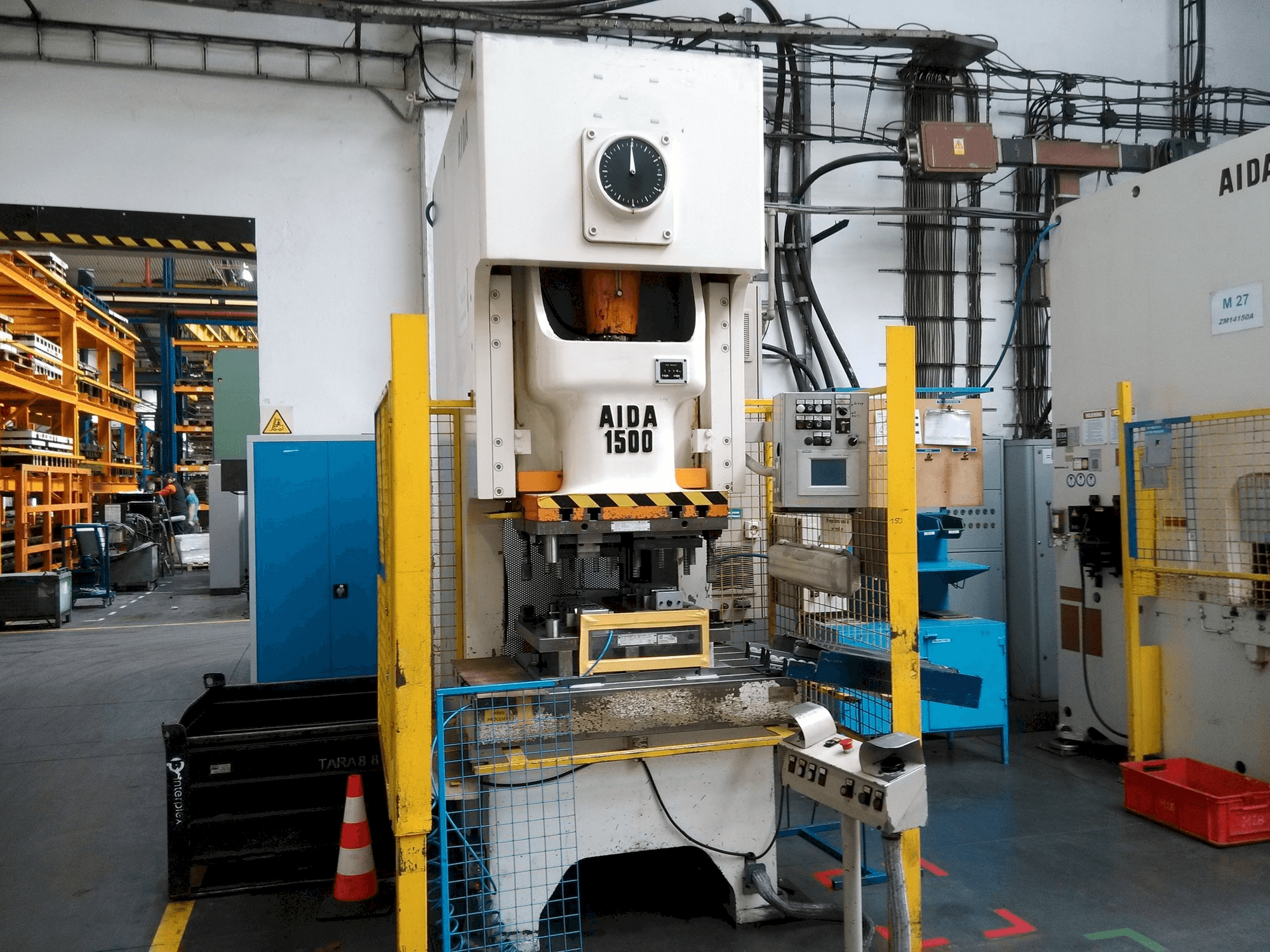

This AIDA NC 1-1500 Stamping Machine was made in the year 2007 in Japan and has been working for 40000 hours. Equipped with a SIEMENS Control unit, this machine can work with a stamping force of 1500 kN.
Overview
- brand: AIDA
- year: 2007
- MODEL: NC 1-1500
- production hours: 40000
- application type: Stamping
- Location: Czech Republic
- machine type: Mechanical Stamping Press
- control unit brand: SIEMENS
Technical Information - AIDA NC 1-1500
Control Unit
- Control Brand: SIEMENS
Dimensions
- Table Length: 1170 mm
- Table Width: 760 mm
Technical Specification
- Max. Stroke: 200 mm
- Stamping Force: 1500 Kn
Additional Information
Machine Benefits
Technical Machine Benefits
- Strokes per minute 30-55 spm
- Die height 400 mm
- Slide adjustment 100 mm
- Slide area 700 x 580 mm
- Main motor 11 kw
- Max. Upper die weight 290 kg
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
