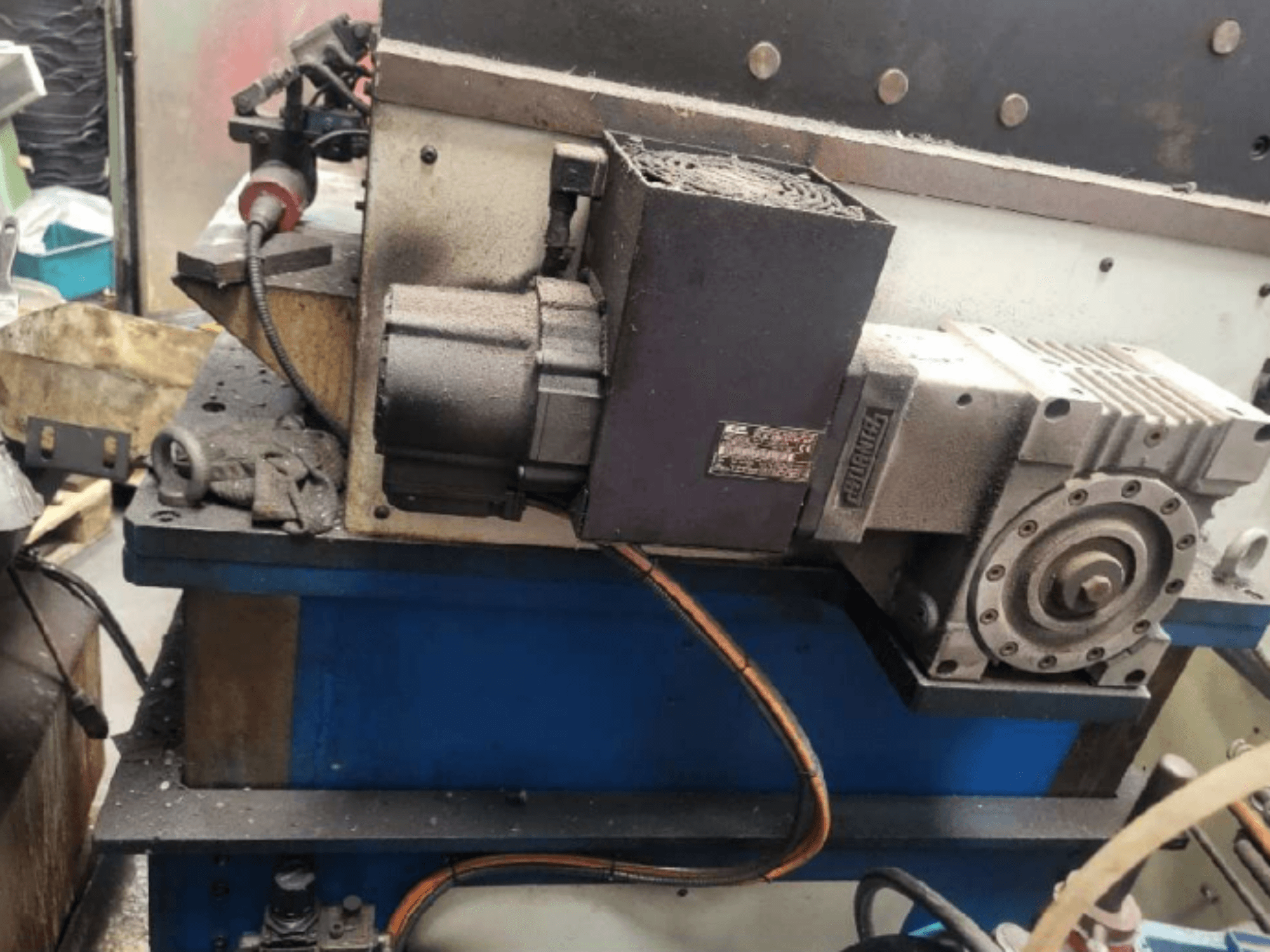

Mechanical stamping press manufactured in 2002. This PRESSIX 160 CNR 6 features a capacity of 160 tons and an adjustable stroke ranging from 20 to 200 mm. It operates at a speed of 20 to 70 strokes per minute and includes a motorized slide adjustment of 100 mm. The table dimensions are 1100 x 700 mm, providing ample workspace. If you are looking to get high-quality stamping capabilities, consider the PRESSIX 160 CNR 6 machine we have for sale. Contact us for further details.
Overview
- brand: PRESSIX
- year: 2002
- MODEL: 160 CNR 6
- application type: Stamping
- Location: Spain
- machine type: Mechanical Stamping Press
Technical Information - PRESSIX 160 CNR 6
Technical Specification
- Stamping Force: 1600 Kn
Additional Information
Stroke: adjustable 20–200 mm
Speed: 20–70 strokes/min (variable)
Slide adjustment: 100 mm (motorized)
Table dimensions: 1100 x 700 mm
Slide dimensions: 750 x 500 mm
Shut height: max 550 mm
Clutch/brake: pneumatic combination
Safety: hydraulic overload protection
Lubrication: automatic centralized oil
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
