➤ Used RAVNE PRESSES Manzoni 315 For Sale | gindumac.com

Show in original language

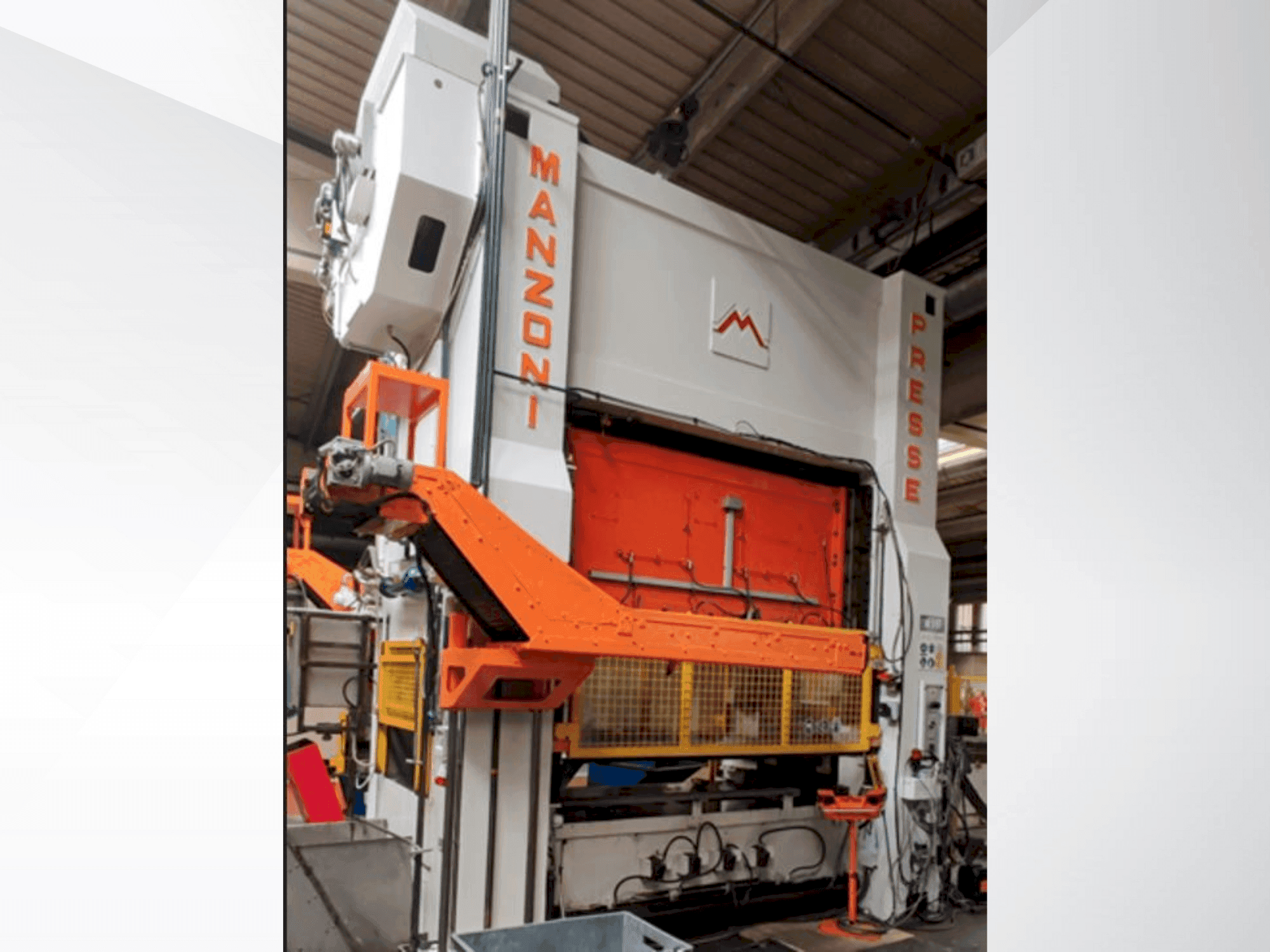

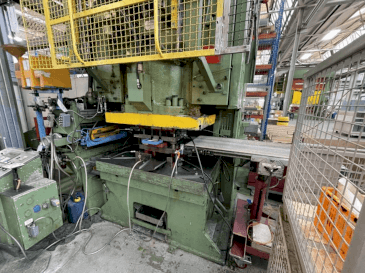

This RAVNE PRESSES Manzoni 315 stamping machine was manufactured in 1992. It features a robust eccentric H-frame, monoblock design with a press force of 3150 kN and a drive power of 60 kW. It has a fixed stroke of 200 mm and slide dimensions of 2550 x 1250 mm. If you are looking to get high-quality stamping capabilities, consider the RAVNE PRESSES Manzoni 315 machine we have for sale. Contact us for more information.

Overview

brand: RAVNE PRESSES
year: 1992
MODEL: Manzoni 315
application type: Stamping
Location: Slovenia
machine type: Mechanical Stamping Press

Technical Information - RAVNE PRESSES Manzoni 315

General Data

Machine weight: 58500 KG

Main drive

Pressing force: 3150 kn
Maximum sheet thickness: 6 mm
Main motor power: 60 kw
Stroke: 200 mm

Additional Information

Additional equipment

Magnetic conveyor for scraps
Quick die cart system
New rails for die cart system
Scissors for sheet cutting
Scissors for sheet cutting
Documentations and drawings included

Machine Benefits

Qualitative Machine Benefits

Feeding speed: 2-96 m/min
Complete press line included
Press was rebuilt in 2017
All services are documented
Decoiler max. Sheet width: 500 mm
Max. Coil outer diameter: 1500 mm
Max. Coil outer diameter: 1500 mm
Feeder roll diameter: 127 mm
Feeder motor power: 75 kw

Technical Machine Benefits

Stroke rate: 10 – 65 /min
Slide adjustment: 200 mm
Number of pressure points: 2
Slide dimensions: 2550 x 1250 mm
Bed dimensions: 2650 x 1250 mm
Shut height: 500 – 700 mm
Side opening dimension: 1000 mm
Front opening dimension: 2810 mm
Number of straightener rolls: 9
Uncoiling speed: 2 - 25 m/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
