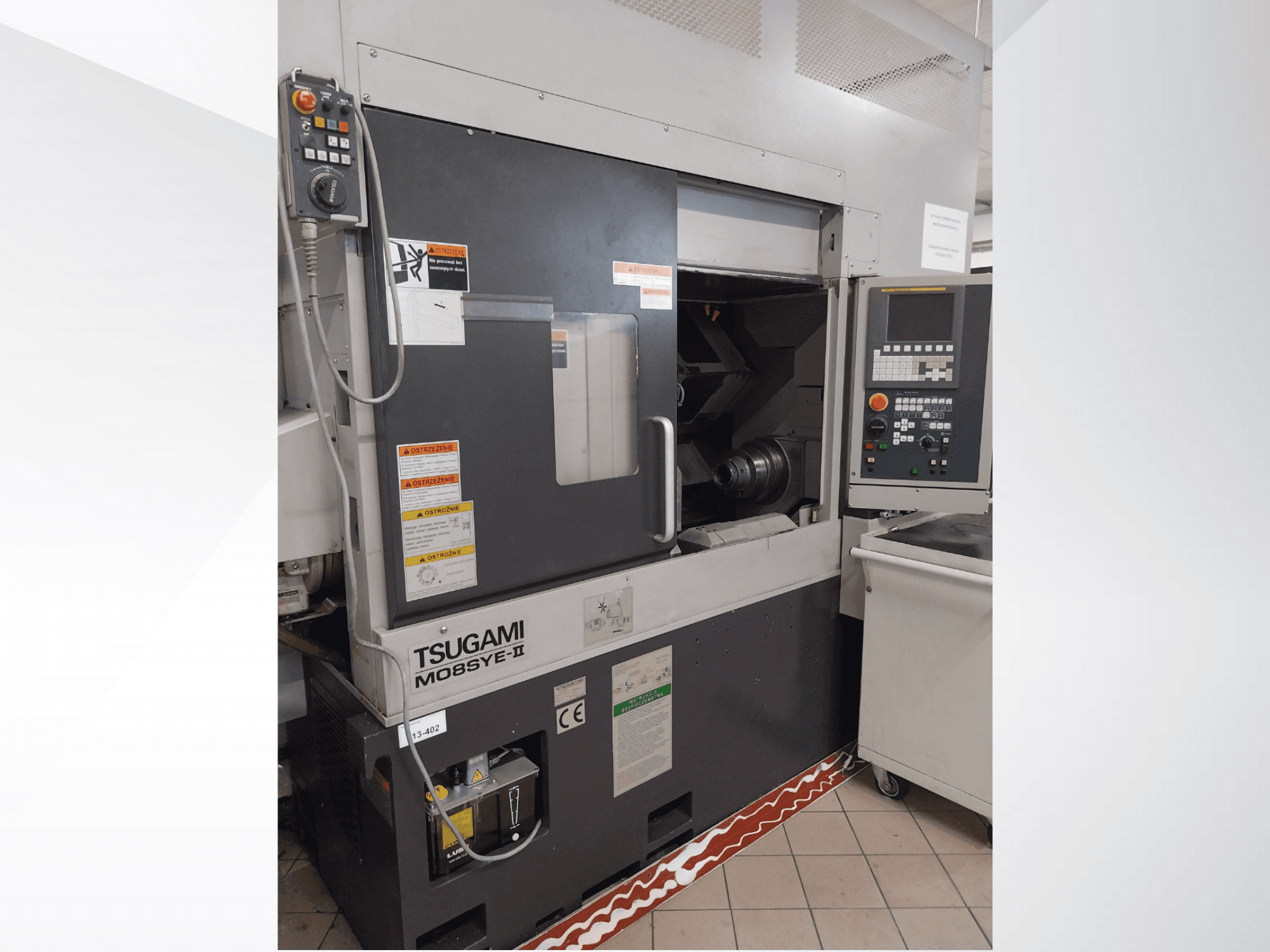

Tsugami M08SY-II CNC lathe, front view, showing control panel, spindle, and loading area. Features safety notices and brand label.
Tsugami M08SY-II CNC lathe, front view, showing control panel, spindle, and loading area. Features safety notices and brand label.

Thank you for your visit

This machine was recently sold.

Browse similar machines

TSUGAMI - M08SYE-IIPL-TUR-TSU-2017-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis TSUGAMI M08SYE-II turn-mill centre was manufactured in 2017. It features a maximum machinable diameter of 280 mm, a machining length of 380 mm, and dual spindle speeds up to 4500 rpm. Equipped with a 12-station turret and a robot for part feeding, it offers efficient processing capabilities. Consider the opportunity to buy this TSUGAMI M08SYE-II turn-mill centre. Contact us for more information about this machine.

Overview

  • brand: TSUGAMI
  • year: 2017
  • MODEL: M08SYE-II
  • production hours: 25919
  • application type: Turning
  • Location: Poland
  • machine type: Turn-Mill Centre
  • control unit brand: FANUC

Technical Information - TSUGAMI M08SYE-II

Control Unit

  • Control Brand: FANUC
  • Control Model: Series 0i-TF

Dimensions

  • Machine Depth: 2470 mm
  • Machine Height: 1930 mm
  • Machine Weight: 6000 kg

Movement

  • X-axis Travel: 221 mm
  • Z-axis Travel: 400 mm

Additional Information

Additional information

  • Maximum machinable diameter: 280 mm / 65 mm (bar)

  • Maximum machining length: 380 mm

  • Number of turret stations: 12

  • Max. speed of driven tool: 5000 rpm

  • Driven tool motor power: 1.5 / 3.7 kW

  • Main spindle speed: 4500 rpm

  • Main spindle bore / bearing diameter: 73 / 100 mm

  • Main spindle motor: 7.5 / 11 kW

  • Back spindle speed: 4500 rpm

  • Back spindle bore / bearing diameter: 59 / 80 mm

  • Back spindle motor: 5.5 / 7.5 kW

  • Coolant pump power: 520 / 815 W (50 / 60 Hz)

  • Required electric capacity: 30 kVA

  • Equipped with a robot that feeds raw parts for processing

  • Full machine documentation + service reports available.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
