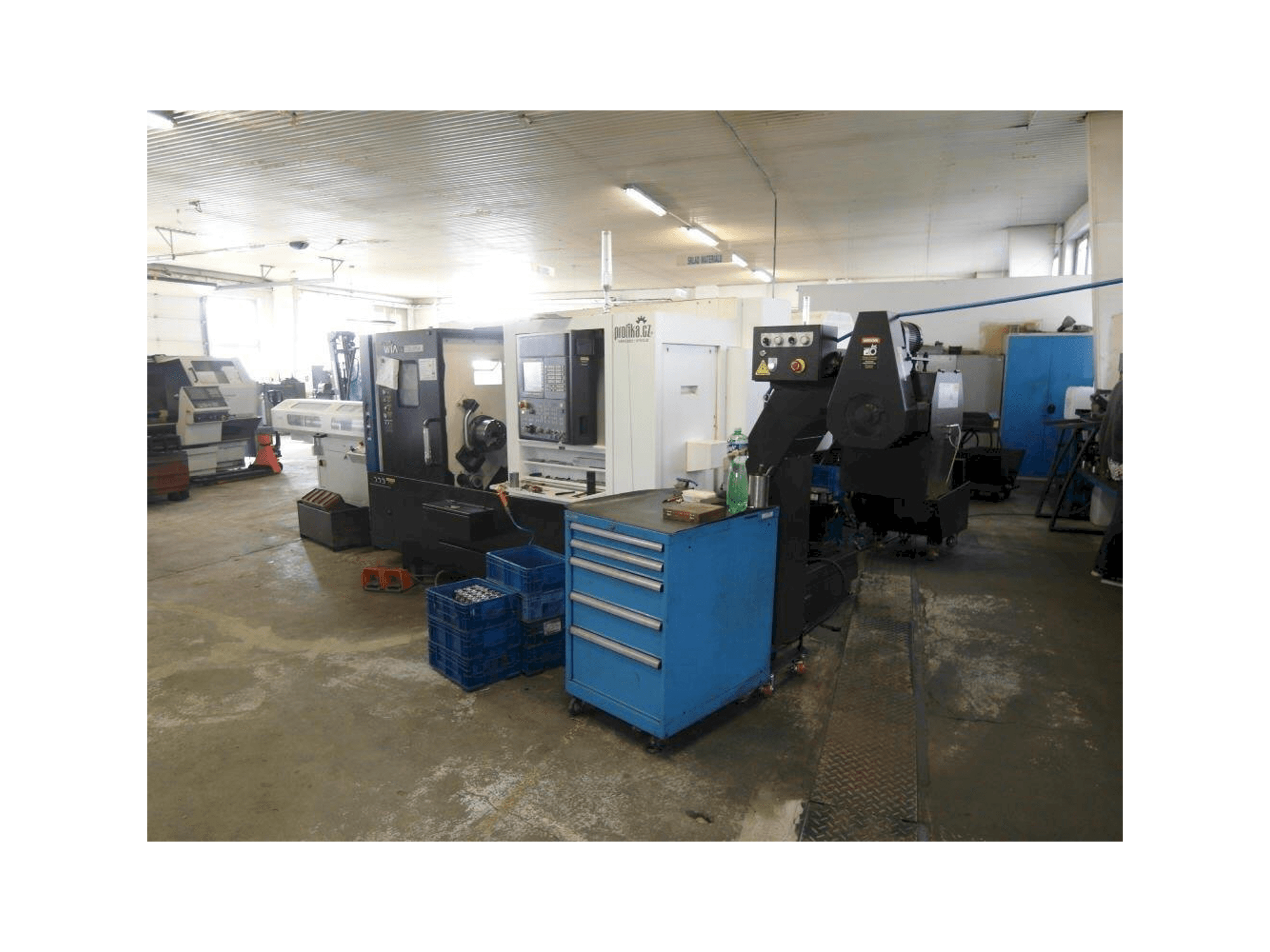

Front view of Hyundai Wia L230LMSA machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Hyundai Wia L230LMSA

Photo Gallery

Hyundai Wia - L230LMSACZ-TUR-HYU-2017-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Hyundai Wia L230LMSA

Show in original language

This Hyundai Wia L230LMSA Lathe was manufactured in South Korea in 2017. This 5 axis machine is operated by a HYUNDAI WIA FANUC i Series control unit. It works with a spindle speed up to 4000 rpm and a turning length 521 mm. This machine is in very good condition.

Overview

brand: Hyundai Wia
year: 2017
MODEL: L230LMSA
application type: Turning
Location: Czech Republic
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - Hyundai Wia L230LMSA

General Data

Measurements width: 3372 mm
Measurements depth: 1685 mm
Measurements height: 1860 mm
Machine weight: 5000 kg

Control Unit

Model: i Series
Brand: FANUC

Main drive

Number of spindles: 2
Spindle speed range: 4000 1/MIN
Spindle motor power: 15/11 kW
Number of axis: 5

Movement

X-AXIS Movement: 220 mm
Y-AXIS Movement: 560 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Media

Main electronic connection: 380 v 50 hz
Power consumption: 26 kva

Additional Information

Machine Benefits

Technical Machine Benefits:
- - B-axis movement 560 mm; c-axis 0. 001 deg. On both spindles
- - Max. Turning diameter 310 mm
- - Max. Swing 550 mm
- - Max turning length 521 mm
- - Hydraulic chuck size: main 8″, sub-spindle 6″
- - Torque 286. 6/210. 2 nm
- - Max. Bar diameter (spindel/sub) 65 / 45 mm
- - Milling tool speed 5000 rpm
- - Sub-spindle speed 5000 rpm; power 3. 7/2. 2 kw
- - High-pressure cooling 20 bar tool setter manual guide programming automatic parts removal sub-spindle parts ejector (pneumatic)
Qualitative Machine Benefits:
- - Machine in very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
